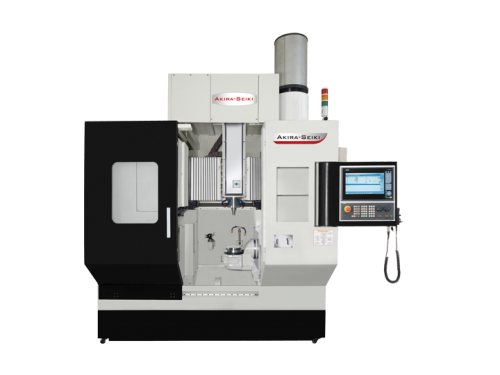

• 5AX-AC300
  • 5AX-AC300
  • 5AX-AC300
  • 5AX-AC300


Features :

5 Axis Simultaneous Machining Center-A/C axis

TRAVEL X/Y/Z axis 400/400/400 mm
3 axis guide ways Ball type mm
A axis swing +45° ~ 120° degree
C axis rotation angle 360 degree
TABLE Table transmission irect-driven mm
Table size ø170 mm
Max. loading 25 kgs
Indexing 0.001° degree
SPINDLE Spindle taper HSK63A
Spindle speed 20,000 rpm
Spindle motor output (peak) 25
Spindle transmission Build-In
ATC Tool storage capacity (Arm Type) 36T(STD) / 60T(OPTtools
Max. tool diameter (w/o adjacent tool) ø75(ø150) mm
Max. tool length 300 mm
Max. tool Weight 8 kgs
FEED A/C axis 80/100 rpm
Cutting feed X/Y/Z 36/36/36 M/min
Cutting feed rate 12 M/min
OTHERS Coolant tank capacity 200 Liters
Machine dimension (Approx.L×W×H) 2,695 x 2,358 x 2,775 mm
Machine weight (Approx.) 4,900 kgs
  • Short distance (525 mm) between front door & table center
  • Compact floor space, suitable for mass production line
  • Applying direct-driven rotary table, high speed & high accuracy
  • Applying built-in 24,000 rpm spindle, high speed & high accuracy
  • Done-in-one ability to lower the cost of equipment, time and people
