| SPECIFICATION |
|

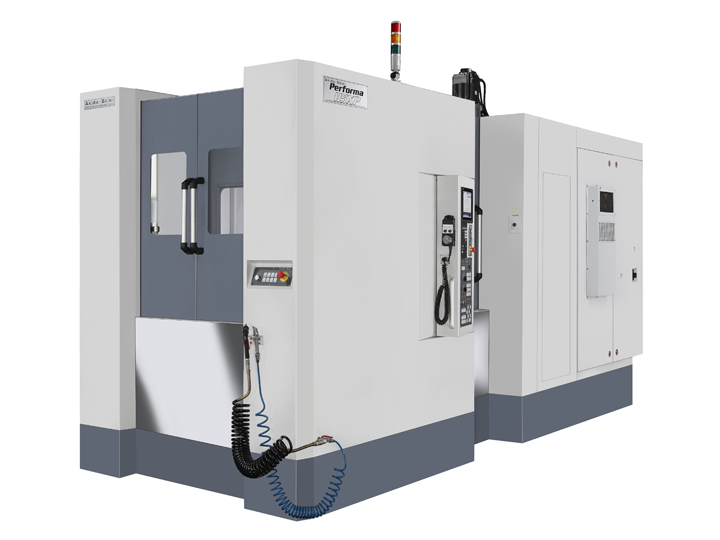

H5XP |
SH500APC |
| TRAVEL |
| X Axis Travel |
mm / inch |
720 / 28.3 |
720 / 28.3 |
| Y Axis Travel |
mm / inch |
720 / 28.3 |
720 / 28.3 |
| Z Axis Travel |
mm / inch |
720 / 28.3 |
720 / 28.3 |
| Spindle Nose to Table Surface |
mm / inch |
50~770 / 2~30.3 |
50~770 / 2~30.3 |
| TABLE / PALLET |
| Number of Pallet |
|
2 |
2 |
| Table Size (W x D) |
mm / inch |
500x500 / 20x20 |
500x500 / 20x20 |
| Max. Loading |
kgs / Ibs |
500 / 1323 |
600 / 1323 |
| Pallet Change Time |
sec |
12 |
8 |
| B Axis Indexing |
degree |
1° |
0.001° |
| SPINDLE |
| Max. Power (Peak) |
HP |
42 |
35 |
| Max. Speed |
RPM |
12000 |
12000 / 15000 (OPT) |
| Transmission |
|
Belt Type |
In-line Direct |
| Spindle Taper |
|
BT40 |
BT40 |
| CTS Function |
|
Standard |
Standard |
| FEED |
| Rapid Feed of X / Y / Z |
M / min
Ipm |
48 / 48 / 48
1890 / 1890 / 1890 |
60 / 60 / 60
2362 / 2362 / 2362 |
| Cutting Feed of X / Y / Z |
M / min
Ipm |
10/ 10 /10
394/ 394 / 394 |
10 / 10 / 10
394 / 394 / 394 |
| ATC(Arm Type) |
| Max. Tool Storage |
|
40T / 60T (OPT) |
60T / 120T (OPT) |
| Max. Tool Diameter |
mm / inch |
∅75 / 3 |
∅75 / 3 |
| Max. Tool Diameter w/o Neighbor Tool |
mm / inch |
∅150 / 5.9 |
∅150 / 5.9 |
| Max. Tool length |
mm / inch |
400 / 15.7 |
400 / 15.7 |
| Max. Tool Weight |
kgs / Ibs |
8 / 17.6 |
8 / 17.6 |
| Tool Change Time (T to T, 60hz) |
sec |
2.5 |
1.5 |
| OTHERS |
| Coolant Tank Capacity |
liters / gal |
520 / 137.4 |
520 / 137.4 |
| Air Pressure Requirement |
Mpa / psi |
0.5 / 72.5 |
0.5 / 72.5 |
| Chip Disposal |
|
Chain type chip conveyor+
dual spiral blade chip
screws on Z axis |
Chain type chip conveyor+
dual spiral blade chip
screws on Z axis |
| Power Requirement |
kVA |
35 |
35 |
| Dimensions (W x D) |
mm / inch |
2700x5075 / 106x199 |
3260x5075 / 128x199 |
| Weight |
kgs / Ibs |
12000 / 26455 |
12400 / 27337 |
