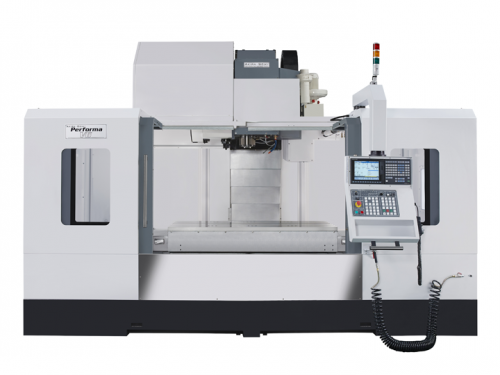

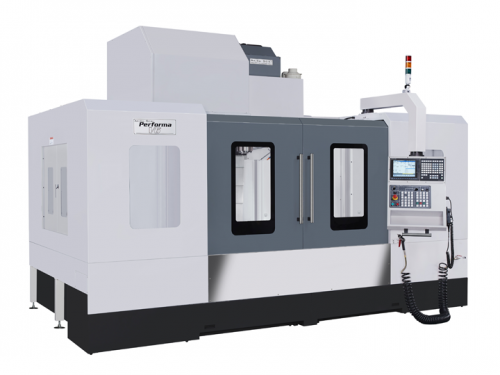

| CONTROL SYSTEM |
AKIRA Mi:845 (Fanuc G code compatible) |
| TRAVEL |
|
| X Axis Travel |
mm / inch |
1630 / 64.2 |
2060 / 81.1 |
2600 / 102.3 |
| Y Axis Travel |
mm / inch |
850 / 33.5 |
850 / 33.5 |
1030 / 40.6 |
| Z Axis Travel |
mm / inch |
815 / 32 |
815 / 32 |
815 / 32 |
| Spindle Nose to Table Surface |
mm / inch |
100~915 / 4~36 |
100~915 / 4~36 |
100~915 / 4~36 |
| Spindle Center to Column Cover |
mm / inch |
865 / 34 |
865 / 34 |
1050 / 41.3 |
| TABLE |
|
| Table Size (L x W) |
mm / inch |
1750 x 800 /
69 x 31.5 |
2150 x 800 /
84.7 x 31.5 |
2750 x 950 /
108.2 x 37.4 |
| T Slot |
mm / inch |
18 x 125 x 6 slots /
0.7 x 4.9 x 6 slots |
18 x 125 x 6 slots /
0.7 x 4.9 x 6 slots |
18 x 125 x 7 slots /
0.7 x 4.9 x 7 slots |
| Max. Loading |
kgs |
2760 / 6085 |
3240 / 7142 |
4320 / 7936 |
| Standard Loading |
kgs |
2300 / 5071 |
2700 / 5952 |
3600 / 6614 |
| SPINDLE |
|
| Max. Power (Peak) |
HP |
V= 30 |
XP = 35 |
V= 30 |
XP = 35 |
V= 30 |
XP = 35 |
| Max. Speed |
RPM |
10,000 |
12,000 |
10,000 |
12,000 |
10,000 |
12,000 |
| 8000 rpm (OPT) |
8000 rpm (OPT) |
8000 rpm (OPT) |
| Spindle Taper |
|
BT40 |
BT40 |
BT40 |
| FEED |
|
| Rapid Feed X / Y / Z |
M / min
Ipm |
30 / 30 / 25
1181 / 1181 / 984 |
30 / 30 / 25
1181 / 1181 / 984 |
30 / 30 / 25
1181 / 1181/ 984 |
33 / 33 / 25
1299 / 1299 / 984 |
33 / 33 / 25
1299 / 1299 / 984 |
33 / 33 / 25
1299 / 1299 / 984 |
| Cutting Feed X/Y/Z |
M / min
Ipm |
10 / 10 / 10
394 / 394 / 394 |
10 / 10 / 10
394 / 394 / 394 |
10 / 10 / 10
394 / 394 / 394 |
12 / 12 / 12
472 / 472 / 472 |
12 / 12 / 12
472 / 472 / 472 |
12 / 12 / 12
472 / 472 / 472 |
| ACCURACY |
|
| Positioning |
mm / inch |
0.015 / 0.00059 |
0.015 / 0.00059 |
0.015 / 0.00059 |
| Repeatability |
mm / inch |
±0.005 / ±0.00020 |
±0.005 / ±0.00020 |
±0.005 / ±0.00020 |
| ATC(Arm Type) |
|
| Max. Tool Storage |
- |
28T |
28T |
28T |
| Max. Tool Diameter |
mm / inch |
65 / 2.6 |
65 / 2.6 |
65 / 2.6 |
Max. Tool Diameter
(w/o Neighbor Tool) |
mm / inch |
130 / 5.1 |
130 / 5.1 |
130 / 5.1 |
| Max. Tool Length |
mm / inch |
250 / 9.8 |
250 / 9.8 |
250 / 9.8 |
| Max. Tool Weight |
kgs |
7 / 15 |
7 / 15 |
7 / 15 |
| Tool Change Time (T to T, 60hz) |
sec. |
2.2 |
2.2 |
2.2 |
| OTHERS |
|
| Coolant Tank Capacity |
liter / gal |
640 / 169 |
700 / 185 |
900 / 237.8 |
| Chip Disposal |
- |
Drawer |
Drawer |
Drawer |
| Chip Screw |
Chip Screw |
Chip Screw |
| Air Pressure Requirement |
Mpa / psi |
0.5 / 72.5 |
0.5 / 72.5 |
0.5 / 72.5 |
| Power Requirement |
kVA |
30 |
30 |
30 |
| Dimensions (W x D) |
mm / inch |
4300 x 3525 / 169 x 139
4730 x 3540 / 186 x 139 |
4950 x 3525 / 195 x 139
5450 x 3540 / 215 x 139 |
6400 x 3950 / 252 x 156
6400 x 3950 / 252 x 156 |
| Weight |
kgs |
12415 |
13765 |
18450 |
| 12465 |
13815 |
18500 |
