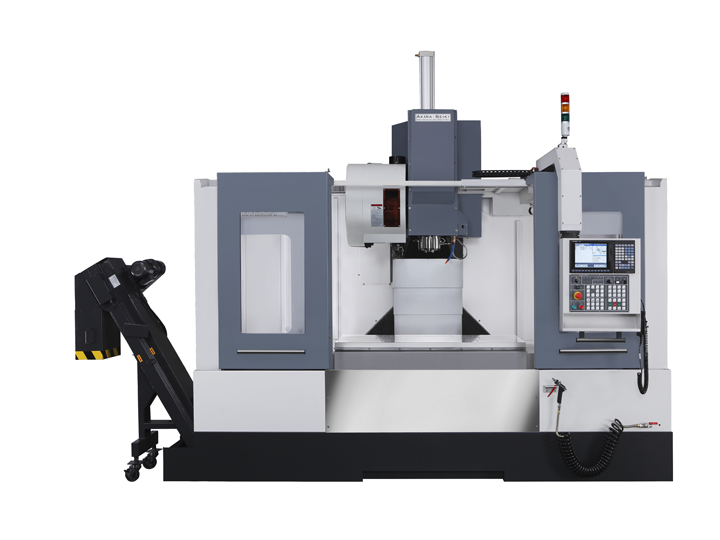

Vertical Machining Center-HV5.5A

Features :

High rigidity and availability
6,000-8,000rpm
42HP

    HV4.5A HV5.5A
CONTROL SYSTEM AKIRA M:845 (Fanuc G code compatible)
TRAVEL
X Axis Travel mm/inch 1150 / 45.3 1350 /53
Y Axis Travel mm/inch 640/ 25 640/25
Z Axis Travel mm/inch 660/ 26 660/ 26
Spindle Nose to Table Surface mm/inch 100~760 / 4~30 100~760 / 4~30
Spindle Center to Column Cover mm/inch 640 /25 640 /25
TABLE
Table Size (L x W) mm/inch 1300 x 600 / 51.1 x 23.6 1500 x 600 /59 x 23.6
T Slot mm/inch 18 x 100 x 5 slots /
0.7 x 3.94 x 5 slots
18 x 100 x 5 slots /
0.7 x 3.94 x 5 slots
Max. Loading kgs/lbs 1560 / 3439 1800/3968
Standard Loading kgs/Ibs 1300 / 2866 1500 / 3307
SPINDLE
Max. Motor Power (Peak) HP+ 42 42
Max. Motor Power (30min) HP 35 35
Max. Speed rpm 8,000 / 6,000 (OPT) 8,000 / 6,000 (OPT)
Spindle Taper ISO 50 BT50 / CAT50 BT50 / CAT50
Method of Spindle Chilling - Oil chilling Oil chilling
FEED
Rapid Feed X/Y/Z M/min
ipm
36 / 36 /30
1417 / 1417 1181
36 / 36 /30
1417 / 1417 1181
Cutting Feed X/Y/Z M/min
ipm
8/8/8
315/315/315
8/8/8
315/315/315
ACCURACY
Positioning mm/inch 0.01 /0.00039 0.01 /0.00039
Repeatability mm/inch ±0.003/±0.00012 ±0.003/±0.00012
ATC
Tool Storage Arm ATC - 28T 28T
Max. Tool Diameter mm/inch 100 / 3.9 100 / 3.9
Max. Tool Diameter (Without Neighbor Tool) mm/inch 200 / 7.9 200 / 7.9
Max. Tool Length mm/inch 350 / 13.8 350 / 13.8
Max. Tool Weight kgs/lbs 15/33 15/33
Tool to Tool Time (60hz) sec. 3.5 3.5
GENERAL
Tank Capacity liter/gal 350 /92.5 400 / 105.7
Chip Disposal - Drawer Drawer
Air Pressure Requirement Mpa/psi 0.5 /72.5 0.5 / 72.5
Power Reguirement KVA 35 35
Floor Space mm/inch 3400 x 2495 / 134 x 98 3800 x 2495 / 150 x 98
Weight kgs/llbs 8380/18474 8380/18474
