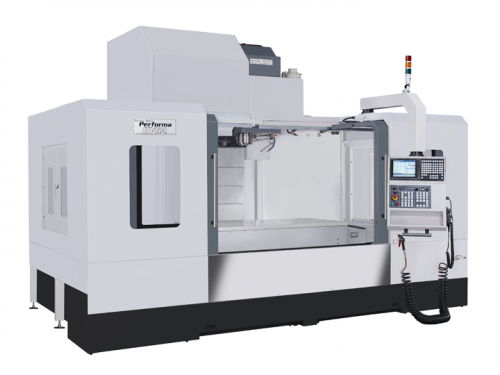

| CONTROL SYSTEM |
AKIRA Mi:845 (Fanuc G code compatible) |
| TRAVEL |
|
| X Axis Travel |
mm / inch |
1630 / 64.2 |
2060 / 81.1 |
2600 / 102.3 |
| Y Axis Travel |
mm / inch |
850 / 33.5 |
850 / 33.5 |
1030 / 40.6 |
| Z Axis Travel |
mm / inch |
815 / 32 |
815 / 32 |
815 / 32 |
| Spindle Nose to Table Surface |
mm / inch |
120~935 / 5~37 |
120~935 / 5~37 |
120~935 / 5~37 |
| Spindle Center to Column Cover |
mm / inch |
865 / 34 |
865 / 34 |
1050 / 41.3 |
| TABLE |
|
| Table Size (L x W) |
mm / inch |
1750 x 800 / 69 x 31.5 |
2150 x 800 / 84.7 x 31.5 |
2750 x 950 / 108.2 x 37.4 |
| T Slot |
mm / inch |
18 x 125 x 6 slots /
0.7 x 4.9 x 6 slots |
18 x 125 x 6 slots /
0.7 x 4.9 x 6 slots |
18 x 125 x 7 slots /
0.7 x 4.9 x 7 slots |
| Max. Loading |
kgs |
2760 / 6085 |
3240 / 7142 |
3600 / 7936 |
| Standard Loading |
kgs |
2300 / 5071 |
2700 / 5952 |
3000 / 6614 |
| SPINDLE |
|
| Max. Power (Peak) |
HP+ |
42 |
42 |
42 |
| Max. Motor Power (30min) |
HP |
35 |
35 |
35 |
| Max. Speed |
RPM |
8,000 / 6,000 (OPT) |
8,000 / 6,000 (OPT) |
8,000 / 6,000 (OPT) |
| Spindle Taper |
|
BT50 / CAT50 |
BT50 / CAT50 |
BT50 / CAT50 |
| Method of Spindle Chilling |
- |
Oil chilling |
Oil chilling |
Oil chilling |
| FEED |
|
| Rapid Feed X / Y / Z |
M / min
Ipm |
36 / 36 / 30
1417 / 1417 1181 |
36 / 36 / 30
1417 / 1417 1181 |
30 / 30 / 25
1181 / 1181 / 984 |
| Cutting Feed X / Y / Z |
M / min
Ipm |
8 / 8 / 8
315 / 315 / 315 |
8 / 8 / 8
315 / 315 / 315 |
8 / 8 / 8
315 / 315 / 315 |
| ACCURACY |
|
| Positioning |
mm / inch |
0.015 / 0.00059 |
0.015 / 0.00059 |
0.015 / 0.00059 |
| Repeatability |
mm / inch |
±0.005 / ±0.00020 |
±0.005 / ±0.00020 |
±0.005 / ±0.00020 |
| ATC(Arm Type) |
|
| Max. Tool Storage |
- |
28T |
28T |
28T |
| Max. Tool Diameter |
mm / inch |
100 / 3.9 |
100 / 3.9 |
100 / 3.9 |
Max. Tool Diameter
(w/o Neighbor Tool) |
mm / inch |
200 / 7.9 |
200 / 7.9 |
200 / 7.9 |
| Max. Tool Length |
mm / inch |
350 / 13.8 |
350 / 13.8 |
350 / 13.8 |
| Max. Tool Weight |
kgs |
15 / 33 |
15 / 33 |
15 / 33 |
| Tool Change Time (T to T, 60hz) |
sec. |
3.5 |
3.5 |
3.5 |
| OTHERS |
|
| Coolant Tank Capacity |
liter / gal |
640 / 169 |
700 / 185 |
900 / 237.8 |
| Chip Disposal |
- |
Drawer |
Drawer |
Drawer |
| Air Pressure Requirement |
Mpa / psi |
0.5 / 72.5 |
0.5 / 72.5 |
0.5 / 72.5 |
| Power Requirement |
kVA |
35 |
35 |
35 |
| Dimensions (W x D) |
mm / inch |
4300 x 3525 / 169 x 139 |
4950 x 3525 / 195 x 139 |
6200 x 3960 / 244 x 156 |
| Weight |
kgs |
12475 |
14410 |
19314 |
